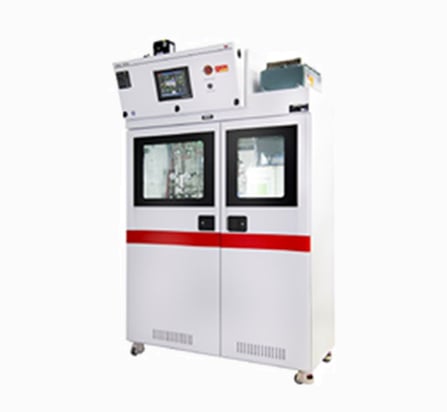

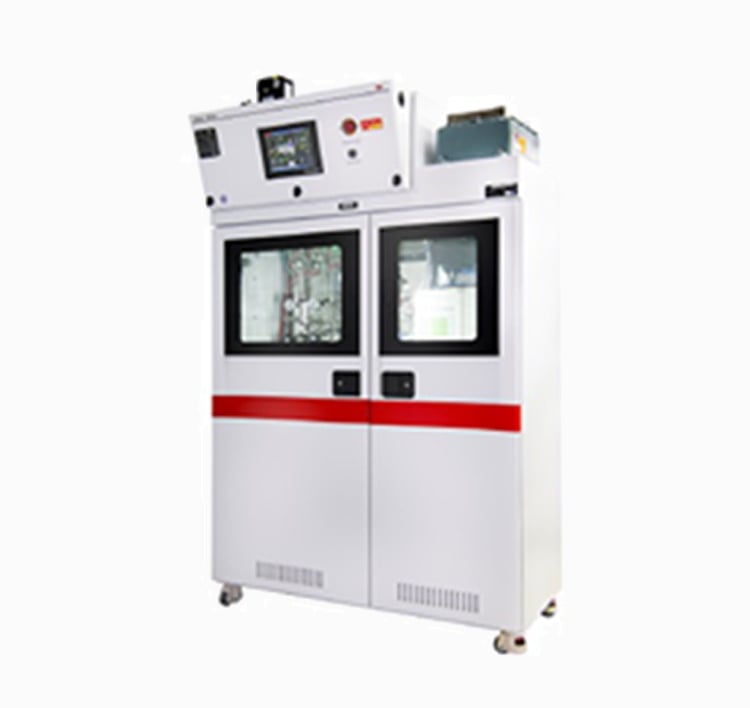

Bulk Specialty Gas Delivery System (BSGS)
Category :Gas delivery systems,
The Bulk Specialty Gas System (BSGS) is a state-of-the-art distribution system designed for safe, automatic delivery of bulk specialty gases. The PLC-based controller provides the operator with intuitive, easy-to-use touchscreen and on-screen prompts to simplify operator interaction with the machine. The graphical interface allows an operator to quickly determine the status of the tool with a glance at the screen. The panel buttons and on-screen menus offer easy access to any of the controller screens. The BSGS is designed to distribute gas to a distribution line from one or two bulk supplies, such as various configuration of cylinder bundles, y-size cylinders or tube trailers.
The Bulk Specialty Gas System (BSGS) is a state-of-the-art distribution system designed for safe, automatic delivery of bulk specialty gases. The PLC-based controller provides the operator with intuitive, easy-to-use touchscreen and on-screen prompts to simplify operator interaction with the machine. The graphical interface allows an operator to quickly determine the status of the tool with a glance at the screen. The panel buttons and on-screen menus offer easy access to any of the controller screens. The BSGS is designed to distribute gas to a distribution line from one or two bulk supplies, such as various configuration of cylinder bundles, y-size cylinders or tube trailers.
Product Details
Additional Info
Images
Technical features
Compatible with all types of bulk supply sources
Auto switchovers for continuous supply based on pressure and weight
Maintains source gas purity
Automatic purge sequences for supply source change out and maintenance
Double stage pressure regulator
J-T effect heaters based on gas, delivery flow and pressure
Programmable logic controller with a color touch screen
Real-time information with user-friendly HMI
Ethernet Communication on all controllers
Modular construction to facilitate service and maintenance
Flow meters for total flow and usage tracking
Options
Double containment pipe pressure management
Start-up, site acceptance test and training
Door Sensors: Provide programmable alarm if door or window is opened
Toxic Monitor: Monitors enclosure continuously for any sign of toxic leak
Fire Sensors: Standard temperature switch or optional UV/IR or dual IR sensors
Emergency gas shutdown
Automatic distribution and purge to minimize human errors
Dual PLC
Cabinet Options
Dedicated purge panel
Weight scale for liquefied gas level monitoring
Pigtail box for a remote purge near the source
Safety features
Exhaust monitoring system
UV/IR sensor
Temperature sensor (ROR)
Coax monitoring
Leak sensor
Smoke detector
Door interlocks
Remote shutdown relays
Emergency off (EMO)
Line cylinder heat
