Valve Manifold Box (VMB/VMP)

Category :Gas delivery systems,

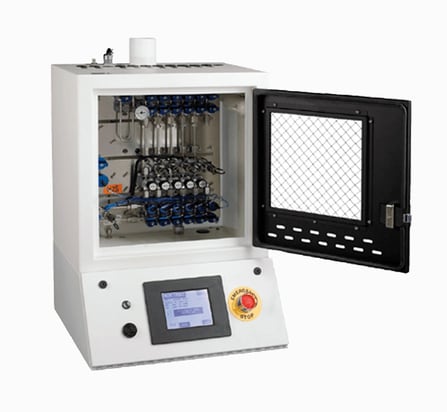

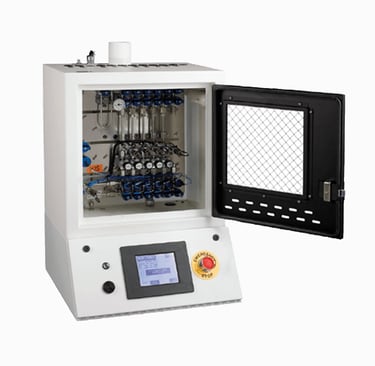

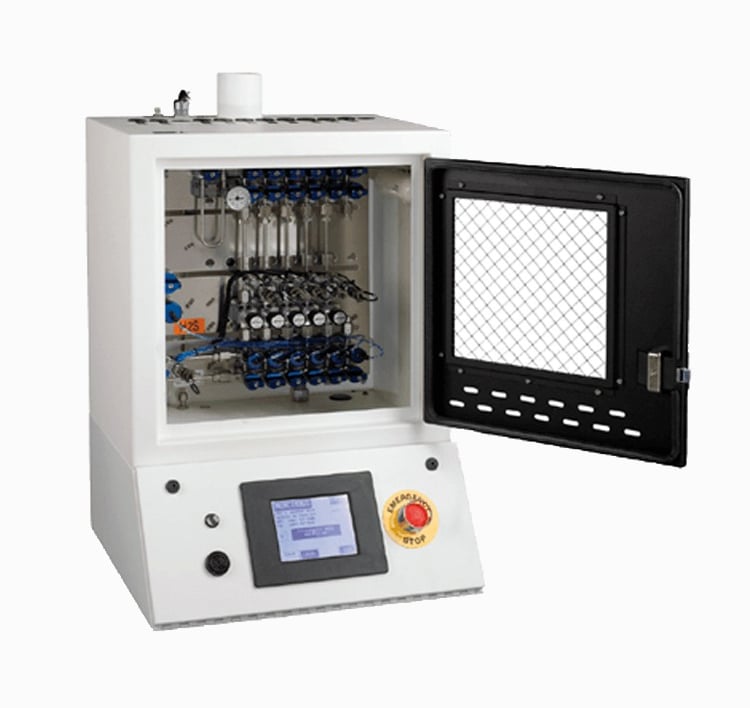

Our Valve Manifold Box (VMB) provides safe and reliable distribution points for a gas system. The VMB can include up to eight individual sticks distributing gas from a single supply line. An optional integrated vacuum generator and N2 purge provide a safe and effective means of purging the lines for service. The VMB system can be configured for a fully automatic system, a semi-automatic system or a fully manual system with ESO capability.

Product Details

Additional Info

Images

Technical features

Inert, toxic and hazardous gases; manual, semi-auto and fully automatic with a touch-screen interface
Cabinet or panel mount
Up to 8 individual UHP gas sticks in a compact enclosure
Variable stick configurations provide versatility
Straight-through valve design improves gas flow and reduces internal volume
Life safety relay logic to override PLC for fi re, leak, toxic and facility shutdowns with relay feedback
Optional vent with vacuum generator; N2 purge for efficient and safe purging of hazardous gases
ESO or stick shutdown capability for individual tool control

Options

Double containment pipe pressure management
Start-up, site acceptance test and training
Door Sensors: Provide programmable alarm if door or window is opened
Toxic Monitor: Monitors enclosure continuously for any sign of toxic leak
Fire Sensors: Standard temperature switch or optional UV/IR or dual IR sensors
Panel Heater for Liquefied petroleum gases

Controller Options

Manual push-button
Up to 8-stick semi-auto
Up to 4-stick auto
Up to 8-stick auto

Cabinet Options

1,2 and 3 cylinder gas cabinet with or without purge panel
1,2 and 3 cylinder gas panel with or without purge panel

Safety features

Exhaust monitoring system
UV/IR sensor
Temperature sensor (ROR)
Coax monitoring
Leak sensor
Smoke detector
Door interlocks
Remote shutdown relays
Emergency off (EMO)
Line cylinder heat
